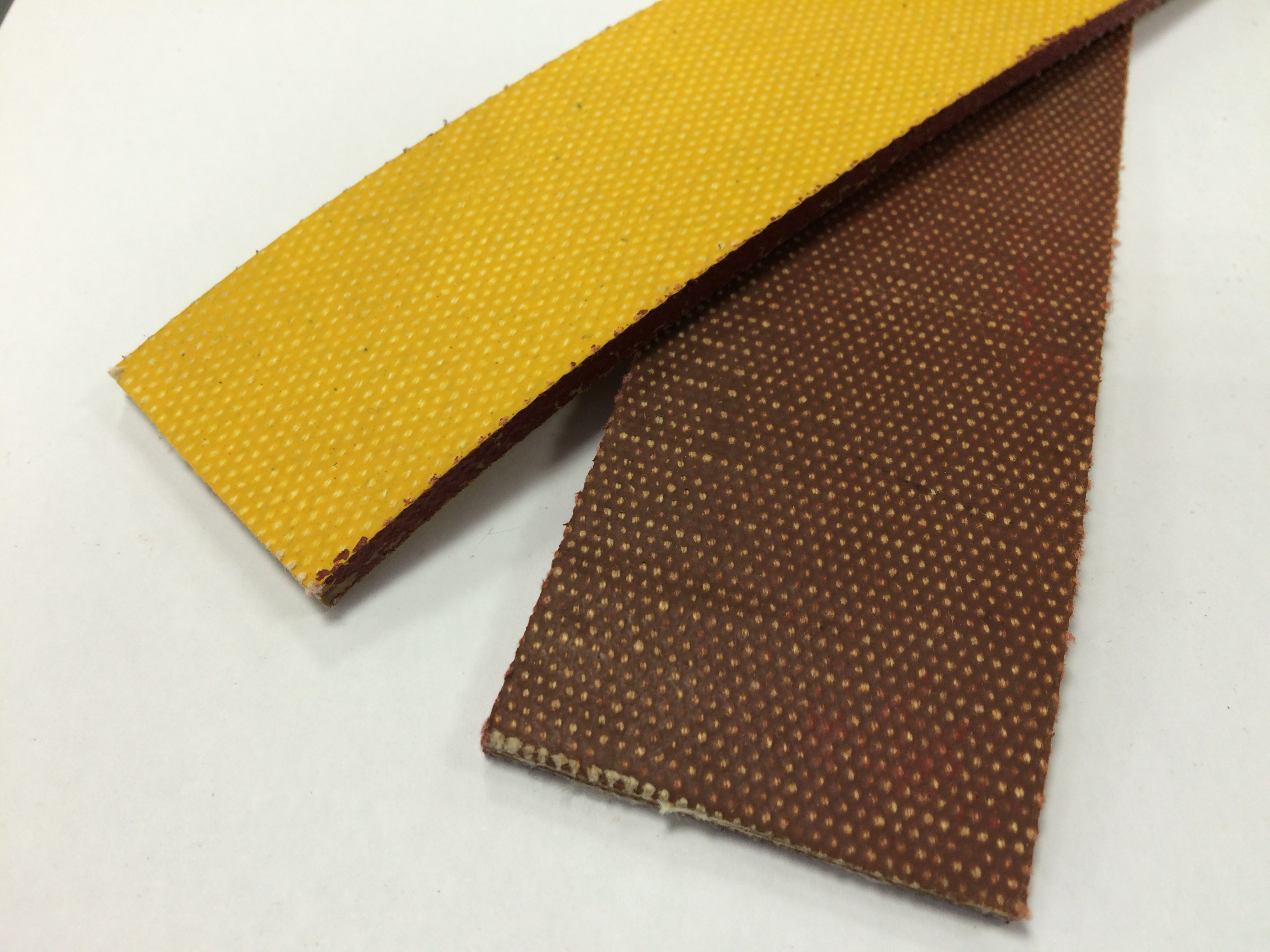

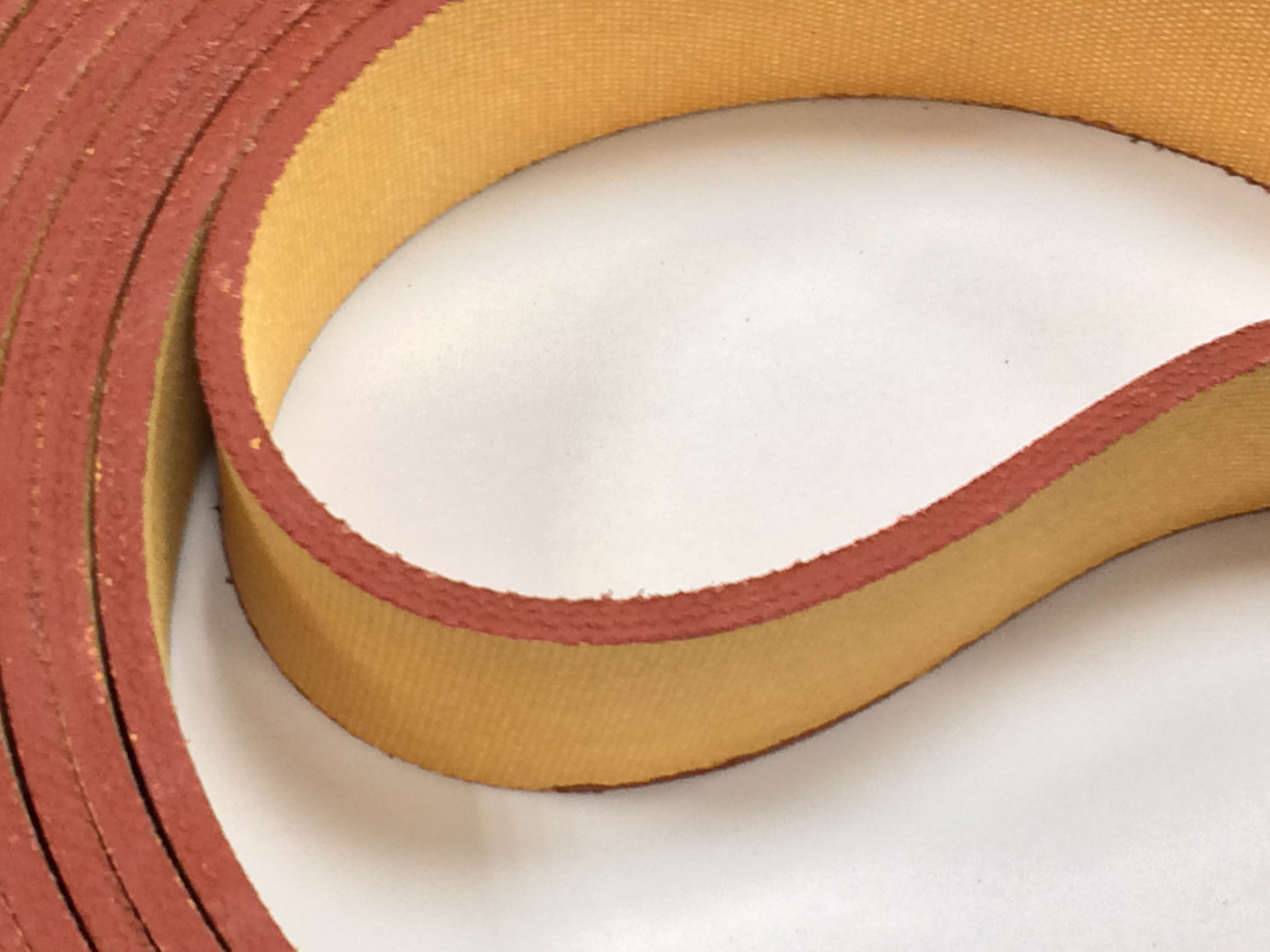

Rubber-and-fabric belts

Keiper rubber-and-fabric belts
  • Equipped with a 3-, 4-, 5-, or 6-ply rubber-fabric traction traction layer
  • The cost-effective power transmission solution for simple applications

Structure of the belt
Carrying side:
Fabric structure:
Backing side:

Type of belt

Design of belt
Total thickness (approx.)
Weight (approx.)
Strength per cm of width
Tensile force for 1% elongation
Minimum diameter deflection
Minimum diameter constriction
Radius of knife edge
Production width

Properties
FDA conformity
EU conformity (Directive 2002/72 EC)
(Directive 1935/2004 EC)
HACCP conformity
Suitable for metal detectors
Permanently anti-static
Resistant to oil and grease (animal, plant)
Resistant to oil and grease (mineral)
Permanent temperature, minimum
Permanent temperature, maximum
Permanent temperature, minimum short-term
Permanent temperature, maximum short-term
Wear, gliding
Wear, rolling
Troughability

Friction coefficient, backing side
Steel plate/stainless steel
Plastic/wood-laminate
Roller, smooth steel
Roller, coated





Rubber, impregnated, beige
X liners, cotton fabric with rubber interlayers
Rubber, impregnated, beige

3-ply              4-ply               5-ply              6-ply


5.0mm            6.0mm            7.0mm            8.0mm
6.0kg/sqm      6.5kg/sqm        7.0kg/sqm      9.0kg/sqm
180kp/cm       240kp/cm         300kp/cm       360kp/cm
6N/mm           8N/mm             10N/mm          12N/mm
120mm           160mm             200mm           300mm
120mm           160mm             200mm           300mm
---                    ---                      ---                    ---
1,080mm        1,080mm          1,080mm        1,080mm


No
No
No
Yes
No
No
No
-10°C
+80°C
-20°C
+90°C
to a limited extent
Yes
Yes



approx. 0.35
approx. 0.35
approx. 0,35
approx. 0.45
